FYI about GSI: The Recipe for Green Stormwater Infrastructure Success

New research highlights some of the ways planners can increase the social benefits and public acceptance of green stormwater infrastructure.

7 minute read

May 20, 2021, 8:00 AM PDT

By Christopher Tirri, Mahbubur Meenar

Green Stormwater Infrastructure

Center for Watershed Protection, Inc via NYS Stormwater / Flickr

Green stormwater infrastructure (GSI) has become an increasingly common way for cities to rely less on traditional "gray" infrastructure such as curbs, gutters, and drains to mitigate flooding and stormwater runoff. GSI is especially useful in legacy cities, usually older and often shrinking in population, with combined sewer systems (CSS) that manage both stormwater and sewage and are easily overburdened during heavy rainfall, forcing polluted waters to divert into nearby waterways.

Most GSI projects utilize a combination of natural and designed elements in ways that highlight the water-trapping properties of vegetation. GSI projects vary in scale and function depending on where they are implemented. Common examples include tree trenches, which refer to vegetation planted in curbside gaps along impervious surfaces to prevent runoff from flooding streets and sidewalks; rain gardens, which are plant-filled concavities that collect and filter runoff; pervious pavements, which encourage infiltration directly where precipitation falls; and green roofs, which occur on flat-roofed buildings to minimize the speed and amount of runoff (Christman et al., 2018).

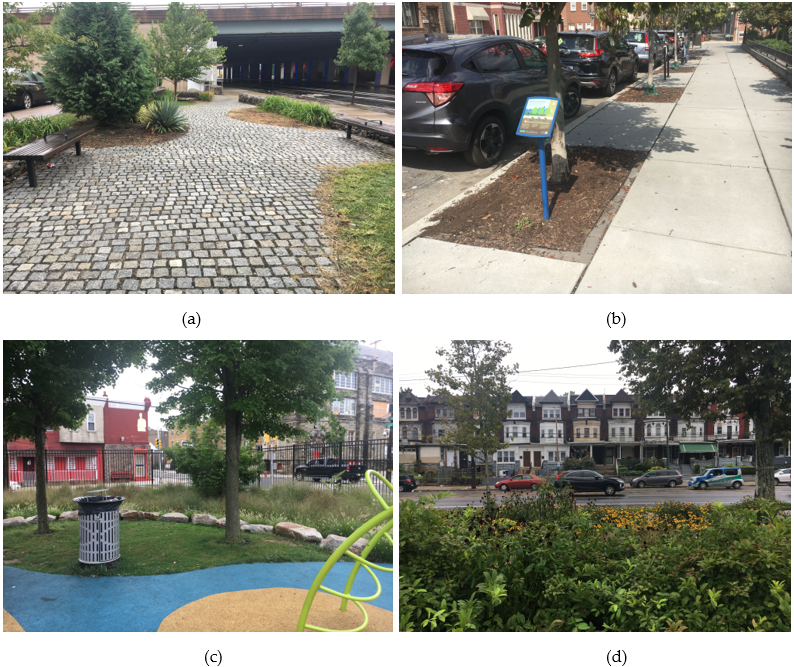

Four examples of highly visible and well-maintained GSI projects in Philadelphia. (a) a porous paving project designed as passive recreational area with seating arrangement and designed landscape; (b) a series of tree trench projects with a visible signage and wide sidewalk; (c) a bioswale designed as part of a play space with a visible trash can; (d) a rain garden next to a busy road with vibrant plants and flower beds. Photos by Shane Walsh.

Beyond its essential functional value, GSI possesses important environmental, economic, and social benefits, ranging from improved air quality and increased property values to the promotion of a sense of community among residents. While urban planning professionals and researchers continue to recognize GSI's wide range of benefits, there remains a lack of understanding of how residents view the various GSI projects cropping up across the shrinking cities in which they live: are they community assets or the harbinger of new environmental concerns? This critical lack of understanding arguably stems from the fact that residents themselves are unsure of how to interpret GSI because it sometimes appears as neither wholly functional nor wholly aesthetic.

A research team from Rowan University, New Jersey, developed a set of questions to better understand how public perception, built and social environments, and different aspects of specific communities affect the long-term success of GSI projects. Does the geographic setting of these projects increase the recreational appeal of GSI projects? What determines GSI project appearance (e.g., signage, maintenance, or visibility)? How do location, surrounding land use, maintenance, recreational amenities, and visual appeal influence public perception of and interaction with GSI projects? How can planners increase the social benefits and acceptance of GSI? Based on extensive field observations in both Philadelphia, Pennsylvania and Camden, New Jersey, as well as a series of intercept interviews with residents, the Rowan research team pursued these questions in a recent article in Land (Meenar et al., 2020).

Methodology

The authors used the Philadelphia Water Department (PWD) Stormwater Map Viewer in addition to interactive maps of Camden, New Jersey's Green Infrastructure Project to identify 183 and 55 sites of GSI projects, respectively, which they then observed and recorded information regarding their settings, surrounding environments, uses, appearances, and recreational offerings. After completing a site visit, the team completed a site analysis form, coded photographs, and created GIS maps of the sites. Team members then ranked each site based on its recreational appeal (high, medium, or low), compared them against each other, and finalized them, with some sites requiring a second visit. Rankings were based on the presence, number, type, and design of available recreational features. The team also conducted a total of 50 intercept interviews: 40 in Philadelphia and ten in Camden. Participants answered questions related to discoverability, familiarity, accessibility, and interactivity of GSI projects, as well as about their overall evaluative perceptions of them.

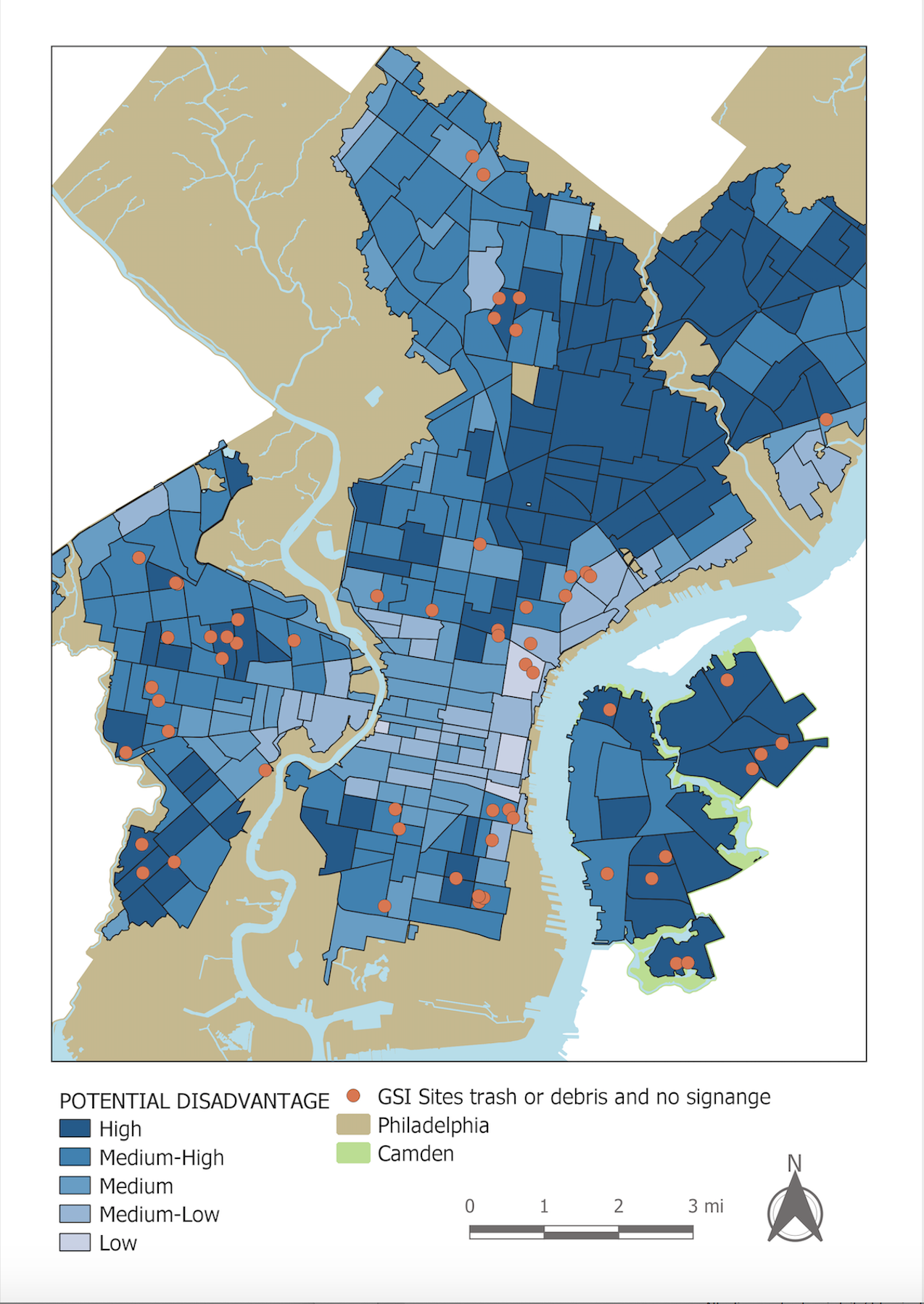

GSI sites visited in Philadelphia and Camden. Data sources: US Census Bureau, Open Data Philly, New Jersey Department of Environmental protection, New Jersey Geographic Information Network, and Delaware Valley Regional Planning Commission. Map by Shane Walsh.

Findings

Qualitative content analysis allowed the team to decipher results related to their guiding questions, wherein four major themes emerged. First, the types of GSI projects with the highest recreational appeal in Philadelphia were basins and porous paving, and those with the highest appeal in Camden were porous paving and cisterns. In both cities, projects situated in Designed Open Spaces had the highest appeal. Projects with low appeal were bumpouts and tree trenches for Philadelphia, and planters and downspouts for Camden. Projects situated in infrastructure-heavy areas rated low in appeal for both cities.

Second, low ratings in attractiveness for GSI projects in both cities were the result of poor maintenance, lack of signage, and low visibility. As the team argues, fewer signs mean less understanding of a project's environmental purpose, resulting in a higher likelihood of misuse and neglect. The relationship between signage and maintenance is especially important during winter months when green spaces tend to look less appealing than they do in the spring and summer months. The team proposes the same correlations for low visibility, particularly in Philadelphia, in that visitors are less likely to take care of a space if no one can easily see it.

Third, GSI projects with the highest amounts of trash and least signage unsurprisingly tended to be located in census tracts with high levels of potential disadvantage in both cities. The team followed an indicator of potential disadvantaged census tracts in the nine-county metropolitan region, created by the Delaware Valley Regional Planning Commission. The indicator includes nine factors, including racial minority, ethnic minority, youth, older adults, disabled, and low-income residents. While Philadelphia's census tracts ran the full range of low to high levels of potential disadvantage (five different levels in total), all of Camden's census tracts rated either high or medium-high.

Finally, when it came to visitor interaction, the team observed very few patrons directly interacting with the GSI projects (e.g., using public benches, weeding, or playing on equipment). The researchers again attributed this lack of sustained interaction to a lack of explanatory signage, as well as to other visual cues like benches or other seating arrangements that would signal to potential patrons that interaction was encouraged or allowed. Based on prior research, the team argued that placing GSI projects in areas with multiple land uses would bolster interaction. Indeed, according to their observations, the highest levels of interaction occurred in and around community-based settings (e.g., large parks and churches), where staff and volunteers took more pride in the appearance of the environments.

The intercept interviews provided solid evidence that confirmed the team's assumptions. Most respondents reported low levels of discoverability because of a lack of understanding of the purpose of GSI projects, a lack of visibility, or a lack of signage. This low discoverability was especially true for tree trenches and infiltration galleries. Next, respondents' levels of knowledge of various types of GSI projects and their function varied greatly, although many reported a basic understanding of the general concepts behind GSI and in particular rain barrels. Access to and interaction with GSI projects were consistently limited or difficult for many respondents, and those who did report moderate levels of access and/or interaction cited easy public access and amenities like shade trees, seating, sports features, and art installations. Some respondents were even inadvertently interacting with GSI projects like infiltration trenches because they had the outward appearance of parks or play areas. Respondents thus tended to highly rate GSI projects if they provided primary or secondary recreational benefits (e.g., basins as walking paths) or if they had strong aesthetic appeal (e.g., rain gardens with colorful seasonal flora). Overall, however, general sentiments among respondents focused on concern for the improper functioning of GSI projects, due to factors like middling maintenance, defective design, and problematic placement.

Implications

The Rowan University research team ultimately offers readers three important implications based on their findings. First, the location of a GSI project has a profound impact on its recreational appeal, so placing a project in a Designed Open Space like a park will likely increase appeal. Second, interpretive signage about and proper maintenance of GSI projects can prevent misuse and misunderstanding of the projects' environmental and social benefits. This second point is precisely why the team advocates for municipalities to develop specific maintenance and monitoring plans that ensure the proper functioning and use of GSI projects. Finally, public interaction is tied to a GSI project's visual appeal and placement in an area with multiple land uses (recreational, leisure, and residential) and high levels of walkability. Planners can therefore use these implications to retrofit existing GSI projects and design new ones.

GSI offers various environmental, economic, and social benefits; however, lack of knowledge of and community support for GSI-related projects can raise important social challenges, facilitate improper use, negatively impact maintenance, and ultimately hasten project failure. To read more about the relationship between GSI projects and residents' use and perception of them, read the research team's full article here.

Christopher Tirri is a graduate research assistant at Rowan University's Community Planning + Visualization Lab in the School of Earth and Environment.

Dr. Mahbubur Meenar is an Assistant Professor of Planning in the Department of Geography, Planning, and Sustainability at Rowan University.

References

Christman, Z., Meenar, M., Mandarano, L, & Hearing, K. (2018). Prioritizing suitable locations for green stormwater infrastructure based on social factors in Philadelphia. Land, 7(4), 1-17.  doi:10.3390/land7040145

Meenar, M., Howell, J. P., Moulton, D., & Walsh, S. (2020). Green stormwater infrastructure planning in urban landscapes: Understanding context, appearance, meaning, and perception. Land, 9(12), 1-20. doi:10.3390/land9120534
