Seeing the Urban Forest for the Trees

It is important to focus on forests rather than individual trees when evaluating trade-offs between infill and sprawled development.

Todd Litman | February 20, 2019, 5am PST
Share Tweet LinkedIn Email Comments
DeymosHR

Planners should generally focus on forests rather than individual trees. This is an important issue when evaluating trade-offs between urban infill and sprawled development. Infill tends to have more visible but smaller environmental impacts than sprawl. Comprehensive analysis often justifies displacing individual trees to allow development which protects regional forests or other types of open space.

A typical two-adult family that locates in a walkable urban neighborhood uses far less land (10-30 units per acre, compared with 2-6 in suburbs), owns one rather than two vehicles, and makes half as many vehicle trips as they would in an automobile-oriented suburb. Consumer surveys indicate that a majority of households would prefer to live in a compact house in a walkable urban neighborhood than in sprawled, automobile-dependent areas. The table below lists some of the resulting benefits.

Compact Infill Benefits

Reduced Land Consumption

Improved Accessibility

Reduced Auto Use

Reduced impervious surface

Habitat preservation

infrastructure cost savings

Transportation cost savings

Improved public health

Increased economic opportunity

Reduced traffic congestion

Reduced traffic deaths

Reduced pollution emissions

Overall, urban infill is far more resource-efficient than sprawl. Urban neighborhood residents produce about a third the carbon emissions as suburban residents (figure below), due to reduced automobile travel and more energy efficient buildings.


Capita Energy Consumption By Toronto Neighborhood

Despite these benefits, urban infill faces many obstacles, resulting in less development and higher prices for housing in walkable urban neighborhoods than is optimal. The biggest obstacle is NIMBY (Not In My Back Yard) opposition. These critics often exaggerate the negative effects of infill development, and ignore the much larger economic and environmental costs of sprawl. For example, opponents often overstate the traffic and parking problems caused by infill development: most traffic models use standard trip generation values, which overstate the congestion caused by infill development and understates the congestion caused by sprawl.

Another debate concerns trees. Opponents fight infill projects that displace trees, ignoring the much larger habitat losses that result from urban fringe development. For example, two recent local magazine articles, "Victoria’s Diminishing Urban Forest," and "Losing trees in Victoria: one mature tree equals 269 saplings," argued that urban development threatens our tree canopy, and criticized the 83-unit Bellewood Park project for displacing ten significant trees. The removal of one tree to build a downtown bike lane created a storm of angry protest signs, petitions, poems, and letters to the newspaper.

I certainly appreciate their intent. Trees are beautiful and enhance the environment, so it is good to promote urban forests. However, that does not require protecting every tree. Anti-infill advocates focus on a few, highly visible trees while ignoring much larger threats to forests, and they generally have nothing to lose. I've never heard homeowners protesting the cutting of trees that threaten their house, or motorist opposing tree removals needed to expand roads or parking lots. For example, the loss of 212 trees [pdf], including 182 Gerry Oaks [pdf], to expand a regional highway interchange raised virtually no opposition.

Methods described below can be used to evaluate these impacts.

Measuring Environmental Impacts

Land uses vary in their environmental values, including wildlife habitat, groundwater percolation and beauty. The most ecologically valuable lands are undisturbed natural openspaces, such as forests and shrub lands. Farmlands, urban parks, gardens and laws generally have less biological diversity, and heavy fertilizer and pesticide use reduce their habitat and groundwater recharge values. Buildings and pavement are impervious surfaces (they allow no groundwater percolation); they are ecologically sterile, although their environmental values can be enhanced with landscaping and the use of permeable materials. The table below rates the environmental values of various land uses.

Land Use Environmental Values

Land Use

Environmental Impacts

Values

Undisturbed  natural open space

Wildlife habitat, groundwater recharge, beauty

Highest

Disturbed  natural open space

Wildlife habitat, groundwater recharge, beauty

Farmlands

Agricultural productivity, beauty

Urban parks

Wildlife habitat, groundwater recharge, beauty

Urban gardens

Wildlife habitat, agricultural productivity, groundwater recharge, beauty

Lawns

Beauty

Gravel roads and pervious parking

Groundwater recharge

Landscaped roads and parking

Wildlife habitat, beauty

Buildings and pavement

Ecologically sterile

Lowest

Natural open space, such as forests, provide the highest environmental values. Impervious surfaces, such as buildings, roads and parking facilities, provide the least environmental values.

Several studies have measured the portion of urban lands devoted to various land uses. For example, the figure below illustrates the portion of land devoted to streets, sidewalks, parking/driveways, and roofs in a typical North American community. Roads and parking facilities cover 10-25% of urban land, and more than half of all land in major commercial centers, far more than the portion of land devoted to buildings.

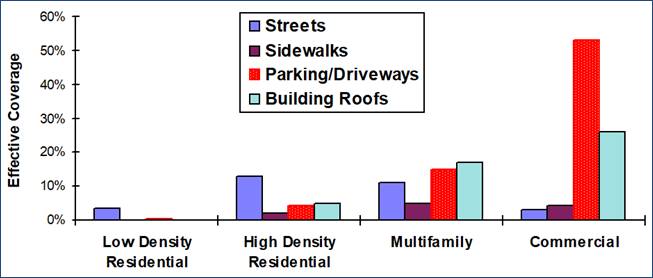

Impervious Surface Coverage (Arnold and Gibbons 1996)

Roads, parking facilities and sidewalks represent a major portion of urban land area.

This indicates how vehicle ownership and use affect land use. As automobile ownership increases, more land must be paved for roads and parking, increasing impervious surface areas. These impacts are generally ignored. When purchasing a motor vehicle, consumers seldom consider the additional roads and parking facilities that they will need, and the environmental damages this will cause. Similarly, planners seldom quantify habitat preserved by policies and programs that reduce automobile ownership and encourage infill rather than sprawled development.

Various studies have measured the number of off-street parking spaces per motor vehicle or per capita in various urban areas.

These studies indicate that in typical North American urban areas there are 2-6 off-street parking spaces per motor vehicle, with lower rates in compact, multi-modal neighborhoods, and higher rates in sprawled, automobile-dependent areas. A typical parking space is 8-10 feet (2.4-3.0 meters) wide and 18-20 feet (5.5-6.0 meter) long, totalling 144-200 square feet (13-19 sq. meters). Including driveways and access lanes, off-street parking typically requires 250-350 square feet (25-35 square meters) per space, allowing 125-175 spaces per acre (250-450 per hectare), depending on design.

Motor vehicles also require road space. The figure below shows the relationship between per capita lane-miles and density in U.S. urban regions. Each lane-mile per 1,000 residents equals about 64 square feet per capita, so this indicates that roadway supply ranges from less than 120 square feet per capita in dense urban areas to more than 1,000 per capita in sprawled urban areas.

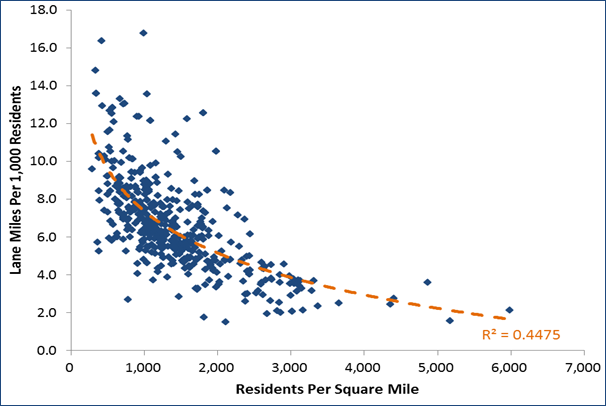

Urban Density Versus Roadway Supply (FHWA 2012, Table HM72)

Per capita roadway supply declines with density. There are 120-1,000 square feet of road space per capita, with higher rates in sprawled areas and lower rates in compact cities. (Each dot represents a U.S. urban region)

Walking, bicycling and public transit require far less land and generate far fewer annual vehicle-miles than comparable households living in sprawled areas. The table below calculates the impervious surface area required for three housing types: car-free urban, car-owing urban, and suburban. It assumes that each house has 1,800 square feet of interior space, with three stories in cities (a townhouse or low-rise apartment) and one story in suburbs; the car-free urban household uses a tenth of a vehicle through sharing and taxis, the car-owning urban owns one car, and the suburban household owns two cars; parking spaces (including driveways and access lanes) average 300 sf in cities and 400 sf in suburbs; and road space per vehicle averages 200 sf in cities and 1,000 in suburbs.

Impervious Surface Area Per Household



Car-Free Urban

Car-Owning Urban

Suburban

House – stories

3

3

1

House area (sf)

600

600

1,800

Vehicles per household

0.1

1

2

Parking spaces per vehicle

2

2

6

Area per parking space (sf)

300

300

400

Total parking space area (sf)

60

600

2,400

Road area per vehicle (sf)

20

200

2,000

Total

680

1,400

6,200

The figure below illustrates the results. A typical two-car suburban household requires an estimated 4,800 square feet more impervious surface than a one-car urban household, and 5,520 more than a car-free urban household.

Impervious Surface Area Per Household

Urban residents require much less impervious surface than if they lived in sprawled, automobile-oriented areas.

Let's put these numbers into perspective. An urban village, where commonly-used services (elementary schools, shops, restaurants, public transit, etc.) are within convenient walking distance of most homes, requires about 15 housing units per acre. The table below compares the impervious surface areas of urban and suburban households.

Urban and Suburban Impervious Surface Areas



Car-Free Urban

Car-Owning Urban

Suburban

Density (household/acre)

15

15

4

Total land per household (sf)

2,904

2,904

10,890

Impervious surface per household (sf)

680

1,400

6,200

Portion of land that is impervious

23%

48%

57%

Remaining green space

2,240

1,504

4,690

Suburban areas have far more land per household, and so can accommodate the large road and parking areas required by high vehicle ownership rates, and still provide significant green space per household. Urban areas have less land per household and so need to limit vehicle ownership in order to preserve local green space.

It is also interesting to compare impervious surface footprints with urban public park area. According to the Trust for Public Land’s "2017 City Park Facts" [pdf], U.S. cities average 13 park-acres per 1,000 residents, or about 570 sf per capita. This is comparable to per capita housing footprints, but less than the amount of land required for roads and parking in suburban areas.

A healthy forest contains 40-100 significant trees per acre. Since living in a walkable urban neighborhood reduces a household’s impervious surface needs by about 5,000 square feet, or about 1/8 an acre, a typical suburban household displaces 5-12 more trees than the same household living in a walkable urban neighborhood. This indicates that the Bellewood Park project, which displaced ten significant trees to build 83 housing units, protected 415-996 trees that would have been cut for the same number of houses developed at the urban fringe.

Overall, this indicates that sprawled, automobile-oriented development displaces 5-10 times as much green space and generates about three times the emissions as development in walkable urban neighborhoods. Residents seldom consider these impacts. You might remove a few trees around your home to improve your view or reduce falling or fire risks. You probably only notice the land paved for roads and parking when they are congested and you want more. You probably never added up all of the land used by your home, parking and roads, and considered the trees they displace.

Because suburban areas have more land per household, they can accommodate the large amounts of pavement that motor vehicles require and still provide significant green space. Urban areas have less land per household, and so must minimize road and parking area to preserve green space. For example, if urban households own just one vehicle which requires just two 300-square-foot parking spaces and 200 square feet of road space, nearly half of local land area is impervious surface. This does not mean that every household must be car-free, but it does suggest that minimizing vehicle ownership is essential for preserving urban forests and enhancing environmental values.

Enhancing Urban Forests

Many cities are starting to implement pavement-busting [pdf] policies to reduce impervious surface and enhance urban forests:

Conclusions

To create more sustainable communities, consider the forest not just individual trees. It is important to be comprehensive when evaluating development impacts. Debates over infill often focus on highly visible local impacts, such as local vehicle trips and tree losses, but ignore the much larger traffic impacts and habitat losses that would result from more urban fringe development.

Trees are renewable: they grow and eventually die. To improve urban forests, plant more trees than are lost, and do everything possible to reduce the amount of land covered by buildings, roads and parking with policies and projects that support compact development, multimodal transportation, and pavement minimization.

NIMBY arguments often reflect a narrow perspective that ignores impacts elsewhere. Although infill development may and increase local traffic and tree displacement, these impacts are generally much smaller than would result from the same number of homes built in sprawled, automobile-dependent areas where residents own more vehicles and drive more, and so need more pavement for roads and parking. Solid research indicates that households in walkable urban neighborhoods own about half as many vehicles and drive about half as much as they would if located in automobile dependent sprawl; these impacts should be considered in analysis.

Our current development policies cause far more impervious surface area, green space loss and pollution than necessary. No current laws guarantees housing for people, but nearly all municipalities have zoning codes that mandate multiple parking spaces per car, with huge economic and environmental costs. These policies force developers to cut down trees for surface parking, or build expensive underground parking which reduces housing affordability. These policies also subsidize automobile ownership and use. We can do better. If you care about forests you should support more compact infill development, transportation demand management, road diets and parking management.
