'Small-World' Networks and the Fractal City

Biological and digital networks offer important lessons for planners as they design cities for the 21st century.




Untitled Document

Photo: Nikos Salingaros Living
cities have intrinsically fractal properties, in common with all living systems.
The pressure to accommodate both the automobile and increased population growth
led twentieth-century urbanists to impose anti-fractal geometrical typologies.
The fractal properties of the Traditional City were erased, with disastrous
consequences for the urban fabric. I will use lessons learned from the evolution
of biological systems and the Internet to discuss the distribution of sizes,
inverse-power scaling laws, and 'small-world' networks. These concepts show
us that extreme densities favored in contemporary urbanism--suburban sprawl
on the one hand, and skyscrapers on the other--are pathological. The challenge
for the Contemporary City is how to superimpose competing connective networks
in an optimal manner.

'Small-World' Networks and the World-Wide Web

In talking about urban connectivity, it is necessary to consider the length
of links (i.e., the different paths) so as to establish a hierarchy of connections
according to their geometry. There is an optimum distribution of sizes: the
paths are going to satisfy some distribution according to their length, width,
or capacity.

A 'small-world' network is one where nodes are connected by both long and
short links (Barabási, 2002; Salingaros, 2001). Starting from a set of nodes
with only nearest-neighbor interactions, add a few longer links at random.
The result is a drastically improved overall connectivity. This is measured
by how many links it takes to get from node A to node B for any two nodes chosen
at random. If the nodes are connected only via nearest neighbors, then one
is required to go through all the intermediate nodes between A and B. Just
a few longer connections provide sufficient shortcuts to improve the connectivity.
What has happened is that a system with only nearest-neighbor (shortest) connections
has been transformed into one that is closer to having an inverse-power distribution
of paths.

Figure 1

Figure
1. A minimally-connected set of nodes with only nearest-neighbor links is made
into a 'small-world' network by adding a few longer links.

We have started at the smallest scale and have built up to the largest
scales. In urban structure, this progression corresponds to the dynamic growth
of a village into a town, at which point it loses its initial small-scale
connectivity. To regain it, it needs to cut new roads as "shortcuts" that
connect spatially-separated regions. As it grows, a city requires larger
and larger roads. A NETWORK IS ALWAYS DRIVEN TO ADJUST ITS COMMUNICATION
INFRASTRUCTURE TOWARDS AN INVERSE-POWER HIERARCHY. This is the reason why
the Medieval City-- with short-range pedestrian connections-- could not survive
unchanged.

Figure 2

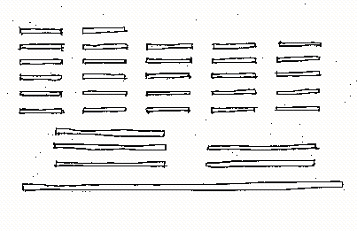

Figure 2. Inverse-power distribution of sizes.

For the same reason, however, the Modernist City, which is artificially biased
towards longer connections, was an unrealistic planning model. The Car City
that emerged in place of the Modernist City requires many short car trips,
hence parking lots everywhere. Contrary to what Le Corbusier decreed, people
have never used their car to drive solely between their house in a garden suburb
and their downtown office. The car is now used for every little chore of everyday
life. Not surprisingly, once we have the sedentary connective freedom offered
by the car, we demand a direct car connection to every urban node. This powerful
force generates commercial suburbia, erasing the compact urban fabric in the
process.

Our craving for direct car connections among every urban node makes the Car
City differ from the Modernist City. The Twentieth-Century City is a combination
of Suburban Car City and Modernist City. In theory, we can connect by car
directly to any other point, as long as there is parking, and no other cars
want to
use the network at the same time. The car increases a person's reach to tens
of kilometers. Even more important is the transport and delivery of goods
by truck. The price for car accessibility, however, is to sacrifice 50% of
a city's
surface to roads and parking, and to make our economies hostages to petroleum
supplies. Le Corbusier wanted to amalgamate the paths in a Modernist City
into one superpath (Salingaros, 1998). His method was to force all residences
together
into a few giant high-rise buildings, and all offices together into downtown
skyscrapers.

The web of public transport that includes subway, trams/streetcars, and light
rail was an invention of cities growing rapidly in the nineteenth century.
It became necessary to introduce shortcuts between regions of the pedestrian
city that were too far apart to connect. The ideal solution was a superimposed
transportation network that does not compete with the existing pedestrian
and vehicular (early motor and horse-drawn) traffic, hence it was built
either underground or raised overhead. The Metro/Subway should be interpreted
as
an
extension of the PEDESTRIAN web, since it links regions of the city that
are themselves parts of the pedestrian web. Altogether, it's a small-world
network
that improves its connectivity by introducing a few longer connections.

Figure 3

Figure 3. Three different competing connective networks shown separated into
layers.

Failure to understand this causality (i.e., what action drives another action)
has led to disappointment when car cities introduce a subway. Just because
Paris has a subway, post-war commuter suburbs-- with an existing road grid
built for cars-- unrealistically expect that a piece of 19th century European
urban fabric will miraculously develop around new subway stops. This has failed
to materialize. In a Car City, the forces are overwhelmingly focused on the
need for parking around a metro station. Forces that would generate a pedestrian
network are simply not present, and the actual needs may prevent any pedestrian
web from ever forming there.

Urban morphology is a product of the particular transportation system laid
down by the government when the city was initially built. Later modifications
to the transportation system lead to changes in city structure. Today, governments
lay down exclusively car cities (by legislating the road network and infrastructure
before anything can be built), or come in and destroy an existing Pedestrian
City in order to transform it into a Car City. In the second instance, pieces
of the old Pedestrian City might survive to provide at least some remnants
of urban life (if the state machine is truly efficient, nothing will be left).
For this reason, it is extremely difficult to transform a post-war Car City
or suburb into a Pedestrian City -- one has to rebuild a new pedestrian network
into the Car City.

The World Wide Web itself has grown and has self-organized according to a
self-similar, small-world structure (Barabási, 2002). That is, it obeys
an optimal distribution of sizes for connective links. None of this structure
has been
imposed-- it has all grown incrementally. Here we have an excellent example
of self-organization, the process by which forces manage to act in balance
to grow a complex system into a stable working structure. This process is analogous
to the miracle of biological growth, as seen in the development of an embryo.
A combination of code (in the DNA) and chemical fields leads to the formation
of a wondrous complex whole.

When 'small-world' networks were first introduced, it was discovered that
the nervous systems of invertebrates (which are simple enough to be mapped)
indeed
obey such a distribution. The need for efficient signal connectivity via a
nervous system has evolved exactly this type of network in animals. A city
should evolve the same type of network connectivity, but unfortunately it cannot
do this automatically. It is necessary to allow both self-generation of urban
fabric on the small scale, as well as deliberate intervention on the large
scale. This is in fact a central problem of urbanism-- the competition between
top-down imposed design, and bottom-up self-generated design. Both processes
are misunderstood nowadays.

The City of the Future

If we can get over the ideological blinders imposed on the world by otherwise
well-meaning but false ideas about "modernity", then we can begin
to understand how the urban fabric forms itself and changes dynamically. We
can then build new cities that incorporate the best characteristics of traditional
cities, while utilizing the latest technology to facilitate instead of frustrating
human interactions. At the same time, we can regenerate older cities, which
already contain physical structures that would today be impossible to duplicate
economically. Those buildings and urban spaces are being sacrificed to an intolerant
design dogma, to be replaced by faceless and lifeless rectangular slabs, cubes,
and parking lots.

Pathological components of the city can be selected against. Either an underconcentration,
or overconcentration, of nodes strains the infrastructure and resources of
the city. Two extremes are suburban sprawl, and skyscrapers. Individuals desire
the first, whereas governments and corporations want the second. Neither is
acceptable. The first of these urban typologies uses up most of the automobile
fuel in the city for the simplest transportation needs. The second typology
concentrates non-interacting people into one building, drawing resources from
the rest of the city. The urban forces generated by the overconcentration of
a skyscraper tend to erase the urban fabric in a significant area around it.
Skyscrapers feed off the rest of the city, and require more infrastructure
and larger expressways to maintain them.

The Electronic City offers help in two distinct ways. Firstly, it replaces
many "dirty" connections of the older city, freeing up infrastructure
and fuel consumption. It makes pedestrian pockets in the city much more attractive
and practicable than ever before. Secondly, its very structure offers us a
template to follow in rebuilding the urban fabric. I mentioned that the Internet
follows the same structural laws as the Traditional City. This should be enough
reason to finally discard the misguided, simplistic twentieth-century models
of urbanism that did so much to damage our cities. IF WE NEED TO CONNECT THE
ELECTRONIC CITY TO A PHYSICAL CITY, THEN THE PHYSICAL CITY MUST FOLLOW THE
SAME STRUCTURAL LAWS. By selectively applying successful prototypes from the
past, together with insights from the science of networks, we can generate
an entirely new type of living contemporary city.

NOTE

This essay consists of extracts from a longer article, presented as a Keynote
speech at the 5th Biennial of towns and town planners in Europe (Barcelona,
Spain, April 2003). The original article entitled "Connecting
the Fractal
City
" is available on-line.

REFERENCES

Barabási, A. L. (2002) Linked: The New Science of Networks, Perseus
Publishing, Cambridge, Massachusetts.

Salingaros, N. A. (1998) "Theory
of the Urban Web
", Journal of Urban
Design 3, pages 53-71. Finnish translation: "Kaupunki Verkostona",
Tampere University of Technology, Institute of Urban Planning, publication
No. 33 (2000).

Salingaros, N. A. (2001) "Remarks
on a City's Composition
", RUDI
-- Resource for Urban Design Information, approximately 14 pages. Finnish translation
of the first half: "Kaupunki ei todellakaan ole puu", Yhteiskuntasuunnittelu
-- The Finnish Journal of Urban Studies 39 (2001), pages 68-76.


Nikos Salingaros is a physicist and Professor of Mathematics at the University
of Texas, San Antonio. He has conducted extensive research into the mathematics
of architecture and urban design.




Comments

Comments

applicability of the theory.....

Theoretically, fractal city seems to be the ideal city possible for me as well. But I would request Mr. Nikos Salingaros to pick any modernist city of twentieth century and elucidate how the problems generated in that city can be rectified using his concept. It would be a real good exercise to establish the applicability of the theory.

transportation network

The traffic on the Internet can be applied down to the physical ground transportation scheme.
http://www.transportationet.com describe a vision on future transportation system imitating the World Wide Web.

Parallel nets or 'net of nets'?

So, in an imaginary "perfect" city, with rich pedestrian and car-based connectivity, would we see car-connectivity to every pedestrian node, or would we see discrete pedestrian neighborhoods acting as nodes within the car network? (In other words, would each building have car-parking, or would we leave our cars at a central parking lot?)

Demeter was pleased....

Friday, and not letting a chance to weigh-in slip by, Salingaros' piece was too technical for my sensibility.

The pictures did not help visualize nodal development further than 'line-n-dot', objectionable when agency and organization place their turkeys before our 'ooh--aah' eyes.

Visualization is more important than mathematics. Mathematical theoretics cannot suffice for the visualizations needed for predicting growth patterns.

Offered as an aside: The 'Zues' city-building game produces some very interesting statistics when players fail to perfect the optimal economic mix. Zues is way better than SimCity. Its' complex balances are mathematically simplified and stunningly visualized. My last city had 'excess carrots' as its only problem. Roads handling busy traffic just fine, industry productive, housing upper middle class, (no estates, no tenements); won many olympic tournaments and the admiration of neighboring states and immortals. What fun! Demeter was pleased.

More paths needed

So,

Essentially, superblocks bad, fine grain grid good.

Fractal Networks

Nikos Salingaros correctly emphasizes nodal proximity as a significant component of the functional efficiency for the built environment. The geometric perception of the various interactions goes far back beyond his earliest 1998 reference to the 1930s where Buckminster Fuller applied mant the same principles to smaller and larger subjects.

Salingaros is absolutely correct that the Car City is not the Optimal City (copyright 2003). His only failing is his desire to allow the perfect (Modernist City) to prevent the good enough (Car City).

When the Car City is no longer good enough, Salingaros' higher ideals are entirely appropos.

Urban morphology is a

Urban morphology is a product of the particular transportation system laid down by the government when the city was initially built. Later modifications to the transportation system lead to changes in city structure. Today, governments lay down exclusively car cities (by legislating the road network and infrastructure before anything can be built), or come in and destroy an existing Pedestrian City in order to transform it into a Car City. In the second instance, pieces of the old Pedestrian City might survive to provide at least some remnants of urban life (if the state machine is truly efficient, nothing will be left). For this reason, it is extremely difficult to transform a post-war Car City or suburb into a Pedestrian City -- one has to rebuild a new pedestrian network into the Car City.
Panic Away Review

Prepare for the AICP Exam

Join the thousands of students who have utilized the Planetizen AICP* Exam Preparation Class to prepare for the American Planning Association's AICP* exam.
Starting at $245
Planetizen Courses image ad

Planetizen Courses

Advance your career with subscription-based online courses tailored to the urban planning professional.
Starting at $16.95 a month

City Coasters

Hand-drawn engraved maps of your favorite neighborhoods are divided up across 4 coasters making each one unique.
$36.00
Woman wearing city map tote bag

City Shoulder Totes - New Cities Added!

Durable CityFabric© shoulder tote bags available from 7 different cities.
$22.00
